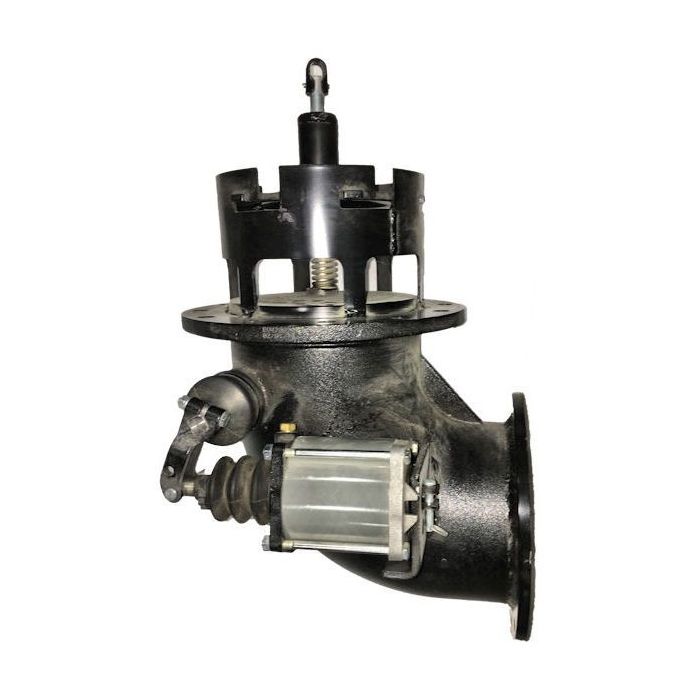

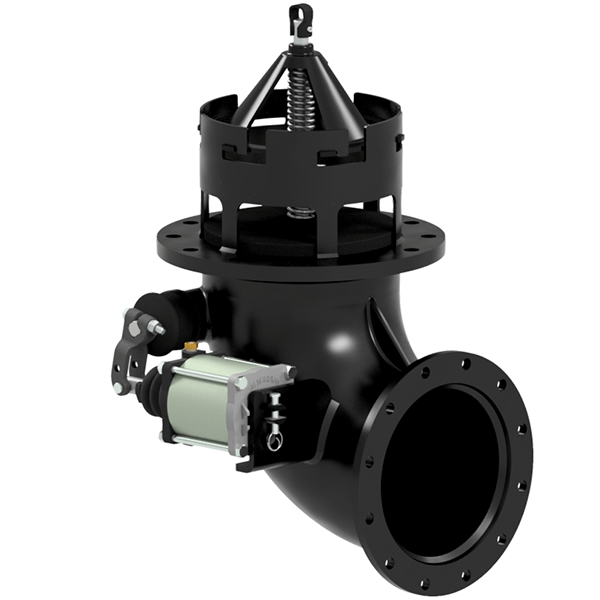

Betts Emergency Valve 6" X 6", Flanged, 90 Degrees, External Air Operated
The Betts 6” Emergency Valve is built to meet HM183 requirements as an internal self-closing stop valve. The aluminum body incorporates a shear section compliant with 49CFR178.345-8 and tested according to TTMA RP 84. For added durability, the body, disc holder, and bonnet assembly feature a black epoxy coating for corrosion protection.
The EV47062AYBN configuration has a flanged 90° outlet, Nitrile seal material, and an external air cylinder with a 1/8” NPT port for air connection. A fusible plug is installed to release air pressure if temperatures exceed 212°F.
The Maximum Operating Pressure is defined as the highest tank pressure the valve can open against with 90 PSIG tank air pressure.

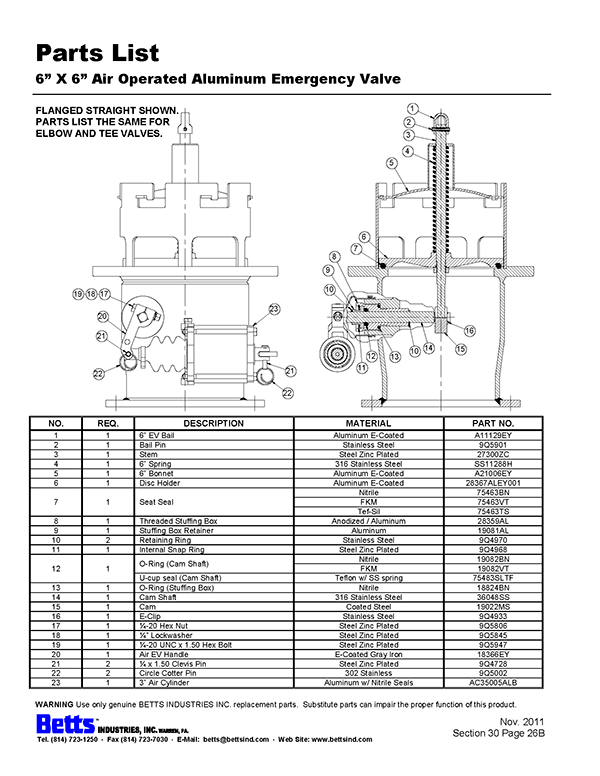

Click the link above to view the parts list for the Betts 6” X 6” Air Operated Aluminum Emergency Valve.
Contact a parts specialist if you have any questions.
| SHIPPING METHOD: | Ground Shipment |
|---|---|
| PART TYPE: | Emergency Valves |
| TRAILER USE: | Crude Trailer |
| MANUFACTURER: | BETTS INDUSTRIES INC. |
| SIZE: | 6" |
| RADIUS: | 90 Degrees |
| PIPE SIZE: | 6" | Flanged |
| SUMP SIZE | 6" | Sump |
| METAL: | E-Coated |
| SEAL MATERIAL: | Buna |
| OPERATING: | Air Operated- External Air Cylinder |
