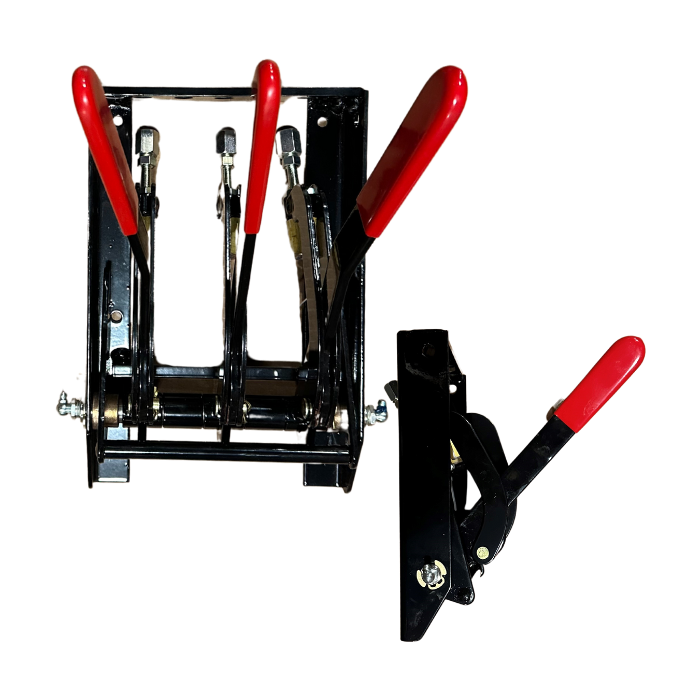

Mechanical Compact Operator (Grease Fitting in Shaft – 3 Compartments)
| TRAILER USE: | Crude Trailer, Gas Trailer |
|---|---|
| PART TYPE: | Cable Operators |
| MANUFACTURER: | BETTS INDUSTRIES INC. |
| STYLE: | Air Valve Compatible |
| SIZE: | 3 Compartment |
| SHIPPING METHOD: | Ground Shipment |
Description
Betts Compact Mechanical Operators function cable-operated emergency valves from a central location on a cargo tank. Available from 1 up to 5 compartments in stainless or powder-coated steel; each compartment is supplied with a fusible link designed to melt at not more than 250°F as well as non-slip cable connectors that allow the cable to be cut to length after installation.
The new design is more compact than comparable Universal or Deluxe models. Slotted mounting straps are available as an option to allow for the replacement of Deluxe operators without drilling new mounting holes. Specify straps by adding the suffix “001” to the assembly number. The lubricated shaft and handle are standard. Grease fittings on both ends of the shaft.
Features & Benefits
Lever arms provide 2-3/8” stroke and 5.6:1 mechanical advantage. Two trip levers are provided for flexibility in locating cable remote control or attaching two remotes if required. See Section 29, Page 1A for the cable remote control.
- ● Compact Design
- ● Stainless or Powder Coated Steel
- ● 2-3/8” Stroke
- ● Solid Handles
- ● Lubricated Stainless Shaft
